Temperature Sensors
 |  |  |  | |

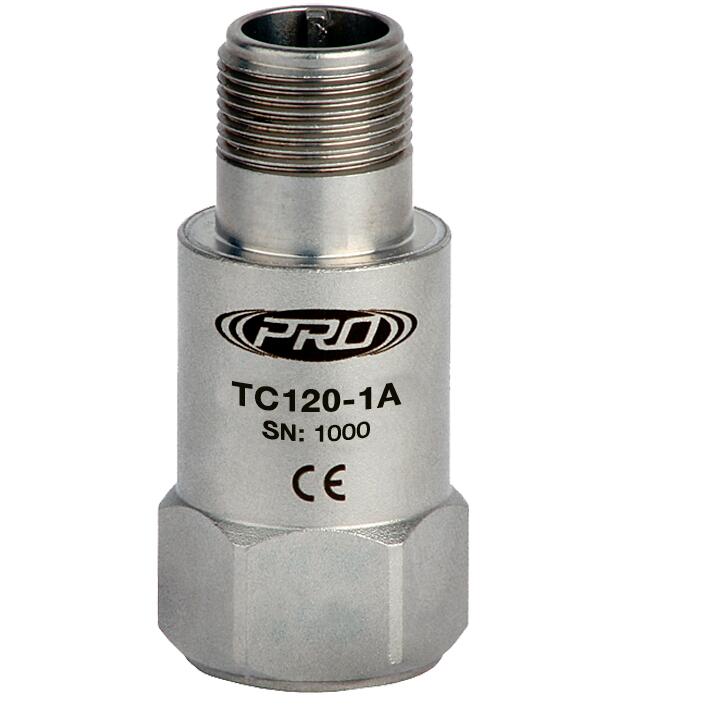

| Series Name | TC120  | TC124 | TK120 | TK124 |
| Description | Temperature Sensor; Top Exit; ° C Output | Temperature Sensor; Side Exit; ° C Output | Temperature Sensor; Top Exit; ° K Output | Temperature Sensor; Side Exit; ° K Output |
| Sensitivity | 10 mV/°C | 10 mV/°C | 10 mV/°K | 10 mV/°K |
| Frequency Response (±3dB) | N/A | N/A | N/A | N/A |
| Dynamic Range | N/A | N/A | N/A | N/A |
| Power Requirements Voltage Source | 4-10 VDC | 4-10 VDC | .5-5 mA | .5-5 mA |
| Temperature Range | 38 to 250°F (3 to 121°C) | 38 to 250°F (3 to 121°C) | -40 to 212°F (-40 to 100°C) | -40 to 212°F (-40 to 100°C) |
| Case Material | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel |
| Connector | 3 Pin MIL-C-5015 | 3 Pin MIL-C-5015 | 2 Pin MIL-C-5015 | 2 Pin MIL-C-5015 |
| Max Temp | 250°F (121°C) | 250°F (121°C) | 212°F (100°C) | 212°F (100°C) |
 |  |  |  | |
| Series Name | TA102 | TA104 | TA117 | TA118 |
| Description | Dual Output, Temperature / Acceleration, Top Exit Connector / Cable, 100 mV/g, 10 mV/°C | Dual Output, Temperature / Acceleration, Side Exit Connector / Cable, 100 mV/g, 10 mV/°C | Dual Output Temperature / Acceleration, Top Exit Connector / Cable, 50 mV/g, 10 mV/°C | Dual Output Temperature / Acceleration, Top Exit Connector / Cable, 50 mV/g, 10 mV/°C |
| Sensitivity | 100 mV/g | 100 mV/g | 50 mV/g | 50 mV/g |
| Frequency Response (±3dB) | 30-900,000 CPM | 30-600,000 CPM | 60-750,000 CPM | 60-750,000 CPM |
| Dynamic Range | ± 50 g, peak | ± 50 g, peak | ± 100 g, peak | ± 100 g, peak |
| Power Requirements Voltage Source | 18-30 VDC | 18-30 VDC | 18-30 VDC | 18-30 VDC |
| Temperature Range | -40 to 250°F (-40 to 121°C) | -40 to 250°F (-40 to 121°C) | -40 to 250°F (-40 to 121°C) | -40 to 250°F (-40 to 121°C) |
| Case Material | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel |
| Connector | 3 Pin MIL-C-5015 | 3 Pin MIL-C-5015 | 3 Pin MIL-C-5015 | 3 Pin MIL-C-5015 |
| Max Temp | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) |
 |  |  |  | |
| Series Name | TA131 | TA135 | TA172 | TA174 |
| Description | Dual Output High g Accelerometer, Temperature / Acceleration Top Exit Connector / Cable, 10 mV/g, 10 mV/°C | Dual Output, Temperature / Acceleration, Top Exit Connector / Cable, 500 mV/g, 10 mV/°C | Dual Output Temperature / Acceleration, Top Exit Connector / Cable, 100 mV/g, 10 mV/K | Dual Output, Temperature / Acceleration, Side Exit Connector / Cable, 100 mV/g, 10 mV/K |
| Sensitivity | 10 mV/g | 500 mV/g | 100 mV/g | 100 mV/g |
| Frequency Response (±3dB) | 72-900,000 CPM | 12-180,000 CPM | 30-900,000 CPM | 30-600,000 CPM |
| Dynamic Range | ± 500 g, peak | ± 10 g, peak | ± 50 g, peak | ± 50 g, peak |
| Power Requirements Voltage Source | 18-30 VDC | 18-30 VDC | 18-30 VDC | 18-30 VDC |
| Temperature Range | -40 to 250°F (-40 to 121°C) | -40 to 250°F (-40 to 121°C) | -40 to 250°F (-40 to 121°C) | -40 to 250°F (-40 to 121°C) |
| Case Material | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel |
| Connector | 3 Pin MIL-C-5015 | 3 Pin MIL-C-5015 | 3 Pin MIL-C-5015 | 3 Pin MIL-C-5015 |
| Max Temp | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) |
, |  | |
| Series Name | TA178 | TA184 |
| Description | Dual Output Temperature / Acceleration, M8 Captive Bolt, Side Exit Connector / Cable, 100 mV/g, 10 mV/K | Dual Output Temperature / Acceleration, M8 Captive Bolt, Side Exit Connector / Cable, 100 mV/g, 10 mV/°C |
| Sensitivity | 100 mV/g | 100 mV/g |
| Frequency Response (±3dB) | 30-600,000 CPM | 30-600,000 CPM |
| Dynamic Range | ± 50 g, peak | ± 50 g, peak |
| Power Requirements Voltage Source | 18-30 VDC | 18-30 VDC |
| Temperature Range | -40 to 250°F (-40 to 121°C) | -40 to 250°F (-40 to 121°C) |
| Case Material | 316L Stainless Steel | 316L Stainless Steel |
| Connector | 3 Pin MIL-C-5015 | 3 Pin MIL-C-5015 |
| Max Temp | 250°F (121°C) | 250°F (121°C) |
