Permanent Monitoring Cordsets
更新：2016/9/30 14:54:09 點擊：
- 產品品牌 CTC

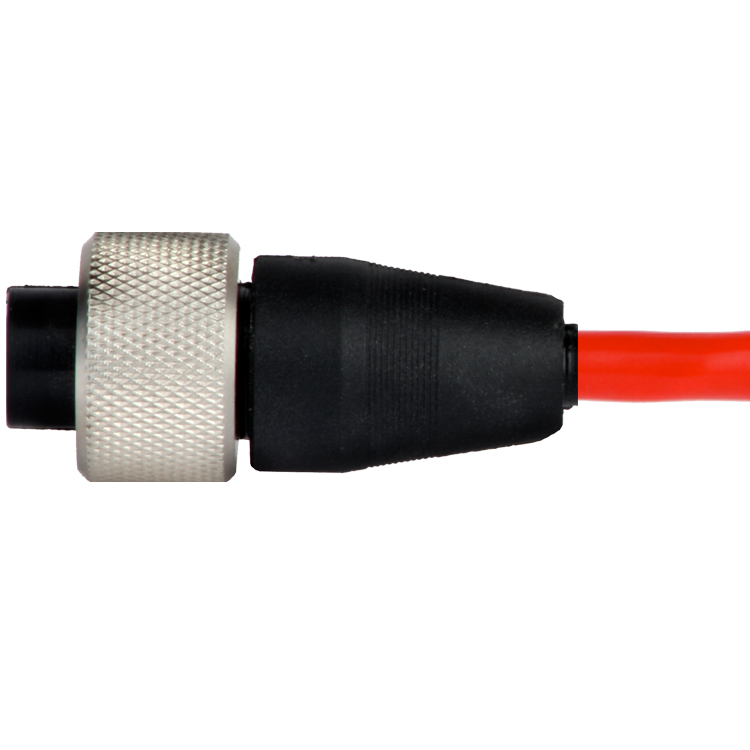

- 產品型號 CB102 A2A Series
- 產品描述 > Cables and Connectors > Permanent Monitoring Cordsets...
產品介紹
Permanent Monitoring Cordsets
 |  |  |  | |
| Series Name | CB102 A2A Series  | CB102 A2E Series | CB102 B2A Series | CB102 J2A Series |
| Description | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut |
| Max Temp | 399°F (204°C) | 399°F (204°C) | 399°F (204°C) | 399°F (204°C) |
| Cable Diameter | .175 in (4.45 mm) | .175 in (4.45 mm) | .175 in (4.45 mm) | .175 in (4.45 mm) |
| Cable Jacket | Red Teflon | Red Teflon | Red Teflon | Red Teflon |
 |  |  |  | |
| Series Name | CB103 A2A Series | CB103 A2E Series | CB103 B2A Series | CB105 J4A Series |
| Description | Standard Cables - For Permanent Monitoring Ended in Blunt Cut | Standard Cables - For Permanent Monitoring Ended in Blunt Cut | Standard Cables - For Permanent Monitoring Ended in Blunt Cut | Standard Cables - For Permanent Monitoring Ended in Blunt Cut |
| Max Temp | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) |
| Cable Diameter | .250 in (6.35 mm) | .250 in (6.35 mm) | .250 in (6.35 mm) | .250 in (6.35 mm) |
| Cable Jacket | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
 |  |  |  | |
| Series Name | CB105 J4C Series | CB110 J2A Series | CB110 J2C Series  | CB111 A2A Series |
| Description | Standard Cables - For Permanent Monitoring Ended in Blunt Cut | Standard Cables - For Permanent Monitoring Ended in Blunt Cut | Standard Cables - For Permanent Monitoring Ended in Blunt Cut | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut |
| Max Temp | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) | 399°F (204°C) |
| Cable Diameter | .250 in (6.35 mm) | .175 in (4.45 mm) | .175 in (4.45 mm) | .190 in (4.83 mm) |
| Cable Jacket | Polyurethane | Polyurethane | Polyurethane | Yellow Teflon |
 |  |  |  | |
| Series Name | CB111 A2E Series | CB111 B2A Series | CB111 J2A Series | CB112 A3A Series |
| Description | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut |
| Max Temp | 399°F (204°C) | 399°F (204°C) | 399°F (204°C) | 399°F (204°C) |
| Cable Diameter | .190 in (4.83 mm) | .190 in (4.83 mm) | .190 in (4.83 mm) | .175 in (4.45 mm) |
| Cable Jacket | Yellow Teflon | Yellow Teflon | Yellow Teflon | White Teflon |
 |  |  |  | |
| Series Name | CB112 B3A Series | CB206 A2A Series | CB206 A2E Series | CB206 B2A Series |
| Description | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut |
| Max Temp | 399°F (204°C) | 399°F (204°C) | 399°F (204°C) | 399°F (204°C) |
| Cable Diameter | .175 in (4.45 mm) | .250 in (6.35 mm) | .250 in (6.35 mm) | .250 in (6.35 mm) |
| Cable Jacket | White Teflon | Red Teflon with Armor | Red Teflon with Armor | Red Teflon with Armor |
 | |
| Series Name | CB206 J2A Series |
| Description | High Temperature Cables - For Permanent Monitoring Ended in Blunt Cut |
| Max Temp | 399°F (204°C) |
| Cable Diameter | .250 in (6.35 mm) |
| Cable Jacket | Red Teflon with Armor |
