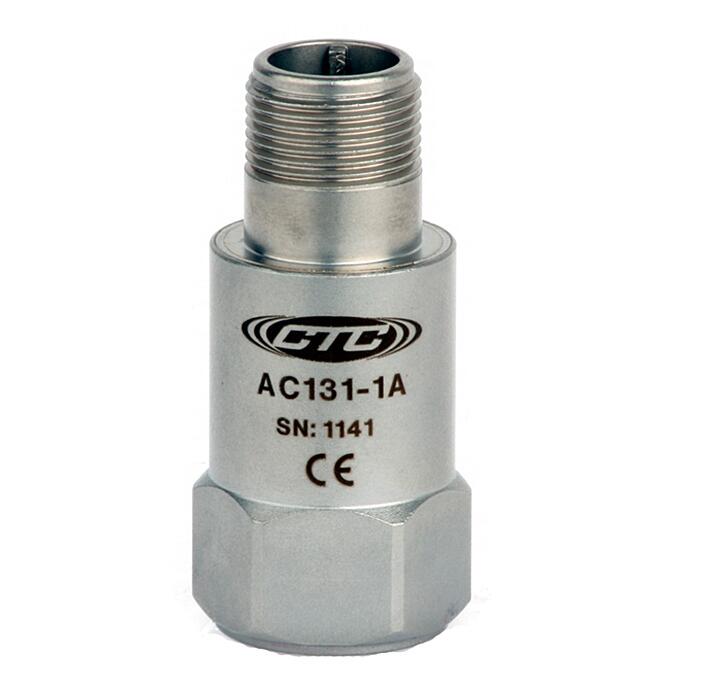

High G Accelerometers 10 mV/g

更新：2016/9/30 15:07:33      點擊：
  • 產品品牌   CTC
  • 產品型號   AC131
  • 產品描述   High G Accelerometers 10 mV/g...

PDF下載 詢價 申請樣品

產品介紹



AC131AC220AC224
Series Name

AC131



AC220



AC224



DescriptionHigh g Accelerometer, Top Exit Connector / Cable 10 mV/gHigh Frequency mini-MIL Accelerometer, Top Exit Cable, 10 mV/gHigh Frequency mini-MIL Accelerometer, Side Exit Connector / Cable, 10 mV/g
Sensitivity10 mV/g10 mV/g10 mV/g
Frequency Response (±3dB)60-900,000 CPM60-1,500,000 CPM60-900,000 CPM
Dynamic Range± 500 g, peak± 500 g, peak± 500 g, peak
Power Requirements Voltage Source18-30 VDC18-30 VDC18-30 VDC
Temperature Range-58 to 250°F
(-50 to 121°C)		-58 to 250°F
(-50 to 121°C)		-58 to 250°F
(-50 to 121°C)
Case Material316L Stainless Steel316L Stainless Steel316L Stainless Steel
Connector2 Pin MIL-C-50152 Pin mini-MIL2 Pin mini-MIL
Max Temp250°F (121°C)250°F (121°C)250°F (121°C)
