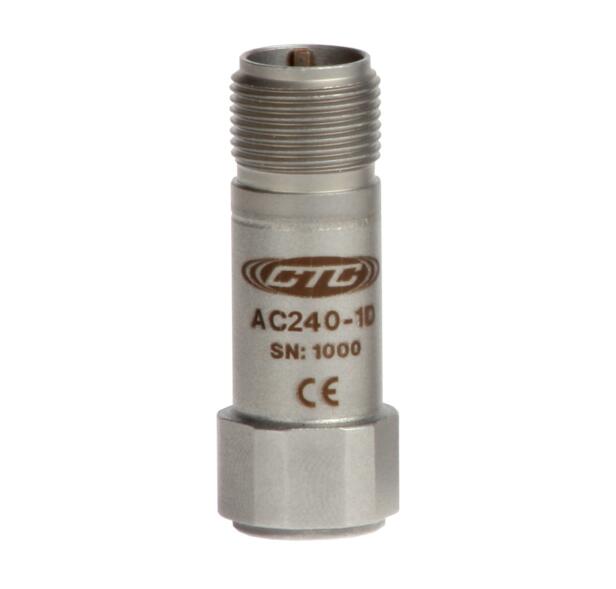

Small Accelerometers 100 mV/g

更新：2016/10/11 17:19:48      點擊：
  • 產品品牌   CTC
  • 產品型號   AC240
  • 產品描述   小尺寸加速度計...

PDF下載 詢價 申請樣品

產品介紹


Small Accelerometers 100 mV/g



AC240AC140AC244AC144
Series Name

AC240



AC140



AC244



AC144



DescriptionPremium Series mini-MIL Accelerometer High Frequency Top Exit Connector / Cable 100 mV/gMulti-Purpose mini-MIL Accelerometer, Top Exit Connector / Cable, 100 mV/gPremium Series, mini-MIL Accelerometer, High Frequency, Side Exit Connector / Cable, 100 mV/gMulti-Purpose mini-MIL Accelerometer, Side Exit Connector / Cable, 100 mV/g
Sensitivity100 mV/g100 mV/g100 mV/g100 mV/g
Frequency Response (±3dB)36-1,500,000 CPM30-900,000 CPM36-900,000 CPM36-600,000 CPM
Dynamic Range±50 g, peak± 50 g, peak± 50 g, peak± 50 g, peak
Power Requirements Voltage Source18-30 VDC18-30 VDC18-30 VDC18-30 VDC
Temperature Range-58 to 250°F
(-50 to 121°C)		-58 to 250°F
(-50 to 121°C)		-58 to 250°F
(-50 to 121°C)		-58 to 250°F
(-50 to 121°C)
Case Material316L Stainless Steel316L Stainless Steel316L Stainless Steel316L Stainless Steel
Connector2 Pin mini-MIL2 Pin mini-MIL2 Pin mini-MIL2 Pin mini-MIL
Max Temp250°F (121°C)250°F (121°C)250°F (121°C)250°F (121°C)
